Our 10m High Hammer Cage that you’ll want to use for your Sporting Stadium
United States (of America) Patent and Trademark Office (USPTO) – Patent #9,889,366 B2
Why are the NEXT GENERATION CAGES a major leap forward in cage design?
Venue operators and club officials all complain about the misgivings of their throwing cage equipment. It’s either in disrepair, no longer compliant, damaged or is just difficult and labour intensive to operate. Features incorporated in the design of Thor 9 and Thor 10 hammer plus Apollo discus cages provide a better customer experience all round.

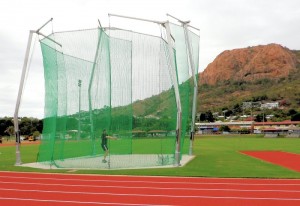

The Thor 10 is a four pole setup with steel poles on hinged base plates for easy installation, along with steel ground sleeves. The ground area has only the four support poles, offering great spectator visibility of the thrower during events.
Net height is set at 7m for the main perimeter of the cage and is held in place with retaining ropes all around the perimeter. Nets are set away from the structure to avoid any contact between the hammer and the poles. This negates rebound towards the thrower and reduces any chance of damage to the poles as well as the net. Gates are set 10m high and can be opened and closed independently with the gate ropes.
The Thor 10 has a Wind Rating to 100 km/h which means that the nets can be left in place during strong winds unlike many other cages. This reduces any manpower required to manage the cage and further reduces any cost involved.
Note: Thor10D is the throwing cage suitable for a double circle application.
THOR 10 SPECIFICATIONS
| Size | 10m x 2m gates, 7 metre high perimeter. |
| Gate pivot distance | 7.0m from circle centre. |
| Gate edge | Rope and resin composite tube. |
| Gate operation | Swing arm open and closing ropes and snop hook at ground anchors. |
| No. of poles | 4 |
| Pole hardware | Rope disc cleats and pulley wheel. |
| Pole material | Combination of steel, aluminium and fibre composites. |
| Ground work | 4 sleeves and removable hinged base plates, 14 rope anchors. |
| Finish | Choice of 12 colours (two pac paint gloss finish). |
| Net | 44mm square mesh, 5mm woven poly cord with 350kg breaking strain, black (green optional), UV stable, World Athletics certified. |
| Net support | Net rails all round. |
| Ropes | 8mm black woven polypropolyne. |
| Wind rating | Net can remain erected up to 100 km/h. |

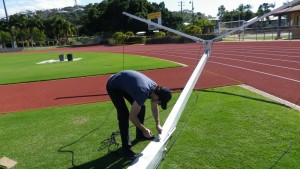

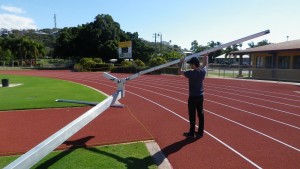

| Assembly method | Poles are assempled on the ground and raised by pulley. |
| Manpower | 2 |
| Assemply time | 6 hours |
| Assembly equipment | Pulleys (provided), spanners M20 (3/4") & M12 (1/2'), knife, pliers. |
| Warranty | 5-year on hard structure and netting to World Athletics compliance |
| Compliance standard | NCAA compliant & World Athletics certified. E-05-0403 |
| United States (of America) Patent and Trademark Office (USPTO) | Patent #9,889,366 B2 |
📌 Thor 10 Hammer Cage Locations
